Scanner

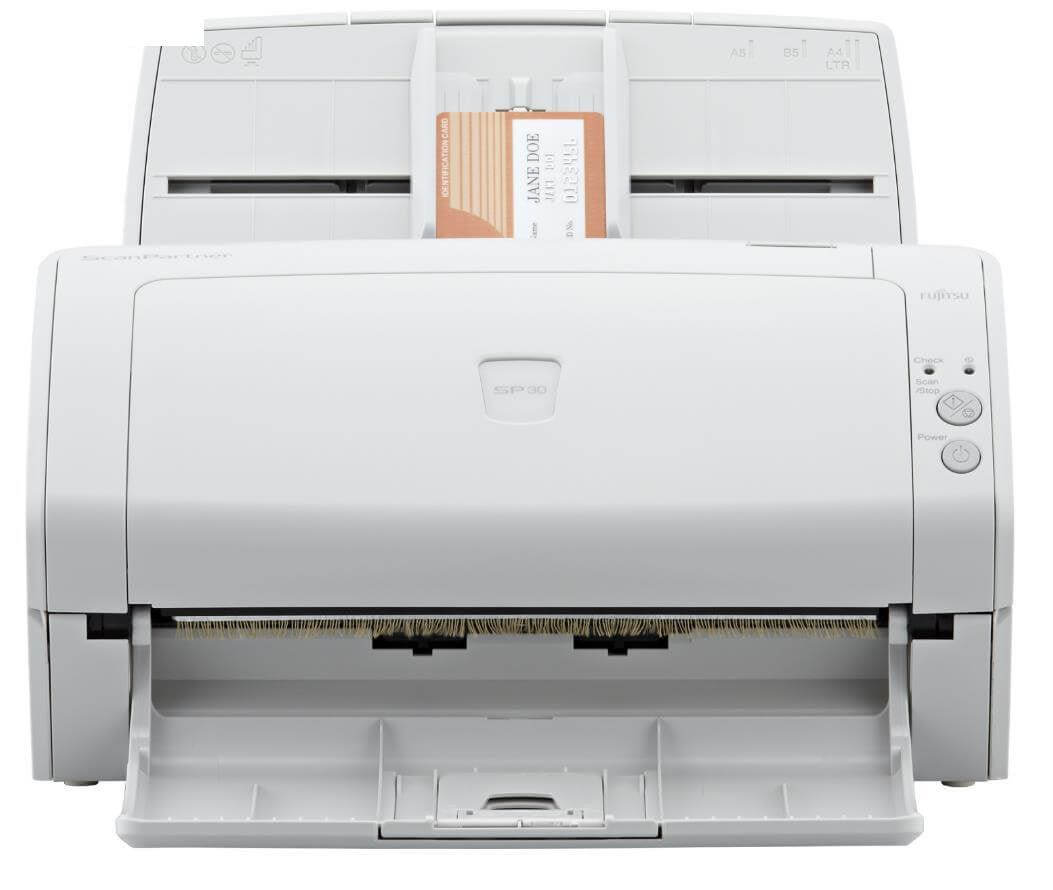

FUJITSU Image Scanner ScanPartner SP30F (PA03684-B501)

  • Vendor:Fujitsu
  • Barcode:617079302005
Availability: In Stock
$399.95 CAD
Wishlist Compare



Specifications

Models ScanPartner SP30F
Supported operating systems Windows® 8 / 8.1 (32-bit / 64-bit), Windows® 7 (32-bit / 64-bit), Windows Vista® (32-bit / 64-bit), Windows® XP (32-bit / 64-bit), Windows Server® 2012 [1], Windows Server® 2008 (32-bit / 64-bit)[1]
Scanner Type ADF (Automatic Document Feeder) + Flatbed
Scanning modes Simplex / Duplex, Color / Grayscale / Monochrome
Image Sensor Type Color CCD (Charge-Coupled device) x 3 (Front x 1, Back x 1, Flatbed x1)
Light Source White Cold Cathode Discharge Lamp x 3 (Front x 1, Back x 1, Flatbed x 1)
Multi-feed detection Ultrasonic multi-feed detection sensor x 1
Document size ADF Maximum[2] A4 Portrait: 210 mm x 297 mm
Legal: 216 mm x 355.6 mm (8.5 in. x 14 in.)
ADF Minimum A8: 52 mm x 74 mm (2 in. x 3 in.)
Long document
(Maximum)[3]
216 mm x 863 mm (8.5 in. x 34 in.), or 210 mm x 3,048 mm (8.27 in. x 120 in.)
Flatbed Maximum Maximum: 216 mm x 297 mm (8.5 in. x 11.69 in.)
ADF Feeding Paper Weight (Thickness) 41 g/m2 to 209 g/m2 (11 lb to 56.2 lb)
and only supports 127 g/m2 to 209 g/m2 (34 lb to 56.2 lb) for A8 size.
Plastic card types (ADF): Portrait / Landscape, 1.4 mm thickness or less [4]
Scanning speed
(A4, Portrait) [5]
ADF Color [6] Simplex: 30 ppm (200 dpi / 300 dpi)
Duplex: 60 ipm (200 dpi / 300 dpi)
Grayscale [6]
Monochrome
Flatbed Color 1.7 seconds (200 dpi)
Grayscale
Monochrome
ADF Capacity [7] 50 sheets (A4: 80 g/m2 or 20 lb) (Active loadable ADF)
Expected daily volume 3,000 sheets/day
Background colors White
Optical Resolution 600 dpi
Output Resolution[8] Color (24-bit) 50 dpi to 600 dpi (adjustable by 1 dpi increments), 1200 dpi [9]
Grayscale (8-bit)
Monochrome (1-bit)
Output format Color 24-bit
Grayscale 8-bit
Monochrome 1-bit
Internal video processing 1,024 levels (10-bit)
Interface USB2.0 / USB1.1
Connector shape B type
Image processing function Hardware or Driver Dropout color (R, G, B)
Driver Deskew & Cropping, Image Emphasis, Error diffusion, Dither, iDTC, Simplified DTC, Smoothing, Dropout color (None, Specified, White, Color Saturation), Multi-image, Blank page skip, Advanced-DTC, sRGB, Auto color detection, Upper lower separation, Vertical Streaks Reduction, Digital-Endorser, Edge Filler
Power requirement AC 100 V to 240 V ± 10%
Power consumption During operation 45 W or less
Power saving mode 2.2 W or less
Power OFF 0.35 W or less
Operating environment Temperature 5 deg. to 35 deg. (42 deg. F to 95 deg. F)
Relative humidity 20 % to 80 % (Non-condensing)
Dimensions: Width x Depth x Height[10] 301 mm x 567 mm x 229 mm (11.9 in. x 22.4 in. x 9.0 in.)
Installation space: 400 mm x 800 mm x 450 mm (15.8 in. x 31.5 in. x 17.8 in.)
Weight 8.8 kg (19.4 lb) or less
Bundled software / drivers PaperStream IP (TWAIN) Driver, PaperStream IP (TWAIN x64) Driver, PaperStream IP (ISIS™) Driver, Presto!™ PageManager™, ABBYY™ FineReader™ Sprint
Environmental compliance ENERGY STAR® and RoHS
Inbox Contents ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM, Quick Installation Sheet, SAFE PRECAUTION
