Dot Matrix Printer

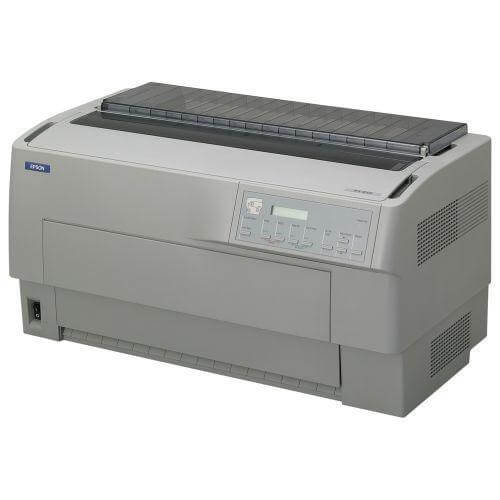

Epson DFX-9000 Dot Matrix Printer - 9 pin - 1550 Cps Mono - Parallel, USB, Serial

Coming Soon to TonerParts!

Notify me when product is in stock:

  • Vendor:Epson
  • Barcode:010343853614
Availability: Out Stock
$3,993.95 CAD
Sold Out

Manufacturer

Epson Corporation

Manufacturer Part Number

C11C605001

Manufacturer Website Address

www.epson.com

Brand Name

Epson

Product Model

DFX-9000

Product Name

DFX-9000 Dot Matrix Printer

Marketing Information

A robust, dependable workhorse, the 9-pin, wide-format DFX-9000 printer boasts a 400-million character print head life and 15-million character ribbon cartridge, which minimizes production costs and reduces the need for frequent user intervention. Its advanced paper handling capabilities make it the perfect solution for a wide variety of applications, including critical spreadsheets, checks, invoices, bar codes and more.

Product Type

Dot Matrix Printer

Technical Information

Print Color Capability

 Monochrome

Maximum Mono Print Speed (cps)

 1550

Number of Pins

 9-pin

Number of Columns

 136

Memory

Standard Memory

 128 KB

Interfaces/Ports

Parallel Port

 Yes

Serial Port

 Yes

USB

 Yes

USB Standard

 USB 1.1

Display & Graphics

Display Screen Type

 LCD

Media Types & Handling

Media Type
  • Continuous Form
  • Multiple Part Form
  • Label

Media Size
  • Custom Size
  • 3"
  • 16.50"
  • 17"
  • 2.50" x 0.94"

Media Handling
  • Push Tractor - Front
  • Push Tractor - Rear

Maximum Print Size

 - 17"

Fonts & Emulation

Language Emulation
  • Epson ESC/P
  • PPDS

Reliability

MTBF

 20000 Hour

Duty Cycle

 100000

Power Description

Power Source

 AC Supply

Input Voltage
  • 120 V AC
  • 230 V AC

Operating Power Consumption

 200 W

Physical Characteristics

Form Factor

 Desktop

Product Color

 White

Height

 14.3"

Width

 27.6"

Depth

 14.9"

Weight (Approximate)

 75 lb

Miscellaneous

Additional Information
  • Print direction (Graphics Mode): Unidirectional (bidirectional via software)

Character Sets:

  • 11 character tables
  • 13 international character sets

Paper Feed Methods:

  • Dual push tractors/paper paths: Automatic back-out and loading
  • Automatic paper thickness adjustment
  • Automatic paper width detection
  • Micro adjustment for top-of-form and tear-off mode
  • Adjustable tractor feed

OPTIONAL interfaces (Not included):

  • Twinax
  • Coaxial
  • Fast Ethernet

Paper Handling:

  • Labels: 2.5 inch x 0.94 inch (minimum)
  • Page length: 3.5 inch minimum for forms with labels
  • Continuous forms size:
  • Width: 3 - 16.5 inch
  • Length: 3 - 17 inch
  • Multi-part Forms:
  • Front: 1 original + 9 copies
  • Rear: 1 original + 6 copies

Certifications & Standards

Energy star compliant

Platform Supported

 PC

Energy Star

 Yes

Environmentally Friendly

 Yes

Environmental Certification

 ENERGY STAR

Warranty

Limited Warranty

 1 Year
